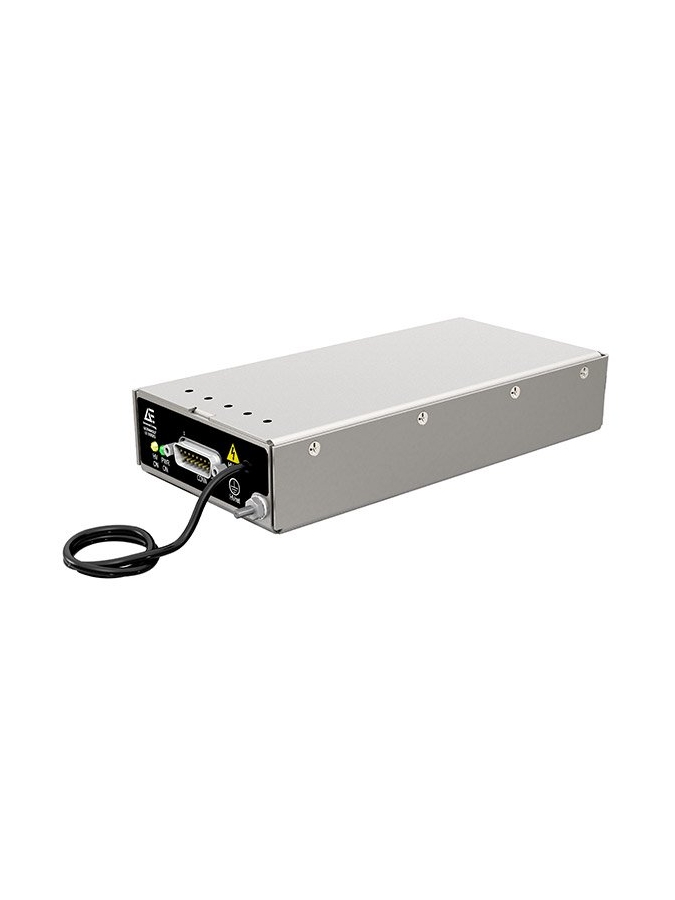

20LE ~ 30LE

Product details

The UltraVolt® LE Series of regulated DC-to-DC converters offer excellent low ripple and stability suitable for precision high voltage applications.

PRODUCT HIGHLIGHTS

  •   Regulated high voltage outputs ranging from 20, 25 or 30 kV DC maximum

  •   Single output: positive and negative polarity models

  •   4, 15 or 30 W of maximum output power

  •   24 VDC input

  •   0 to 10 VDC (full-scale) analog control interface with differential input

  •   Temperature coefficients 25 ppm/°C

  •   Control/monitoring of both output voltage and current setpoint levels

  •   Optional enhanced output stability option for operation down to 0 VDC (-AZ option, 4 W only)

  •   Chassis mount

  •   Front and rear panel high voltage output and return options

  •   UL/cUL recognized, CE mark (LVD and RoHS), IEC-62368-1
